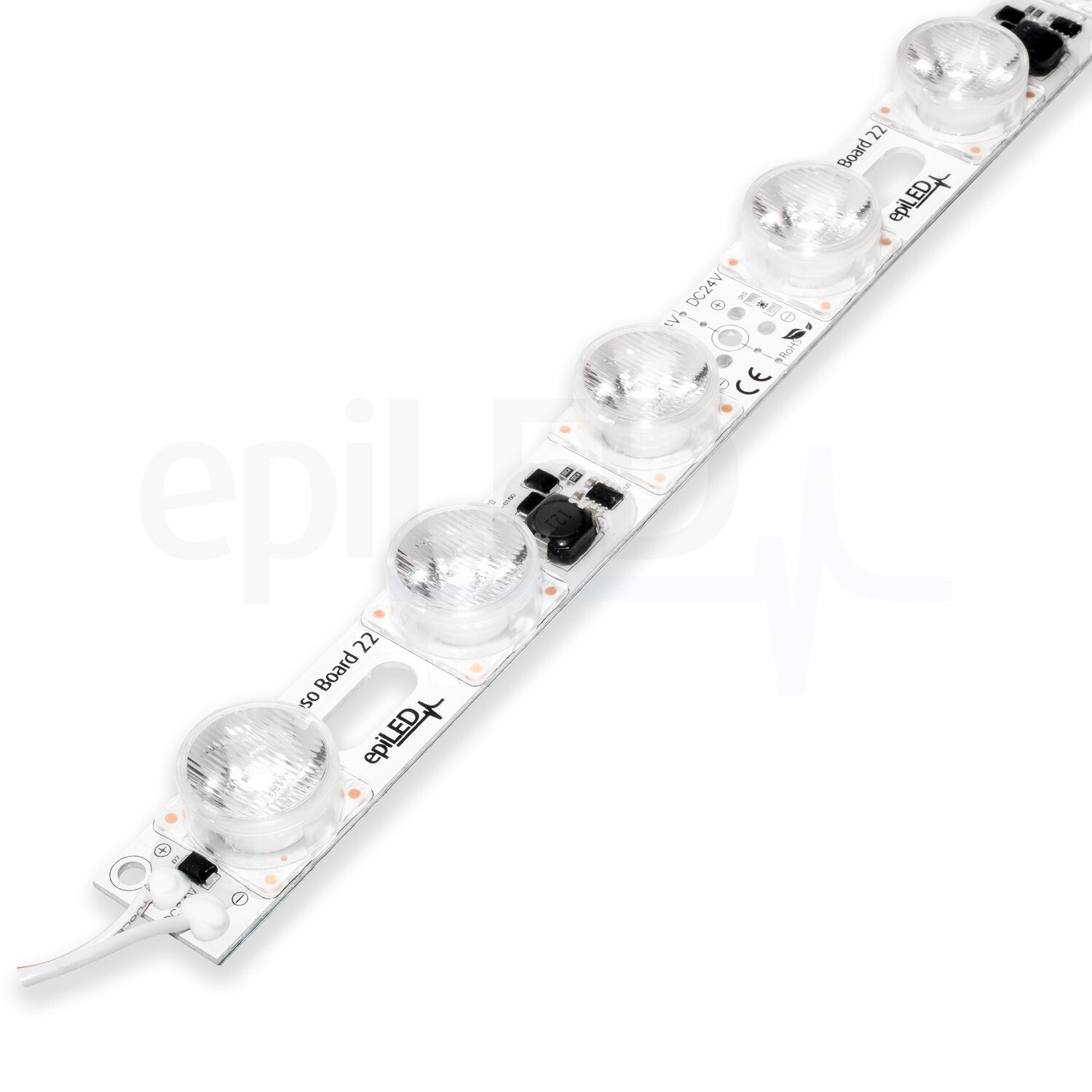

Elypso Board 22

Application
Best for 60mm - 120mm Single-sided or 8 0mm - 150mm Double-sided.

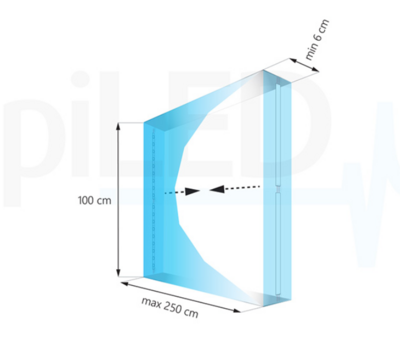

Cost & time efficient edge-lit solution for lightboxes, totems & large format advertising, with up to 2.5m max throw.

Features

• Binned POWER LED- quality diode with high luminous efficiency.

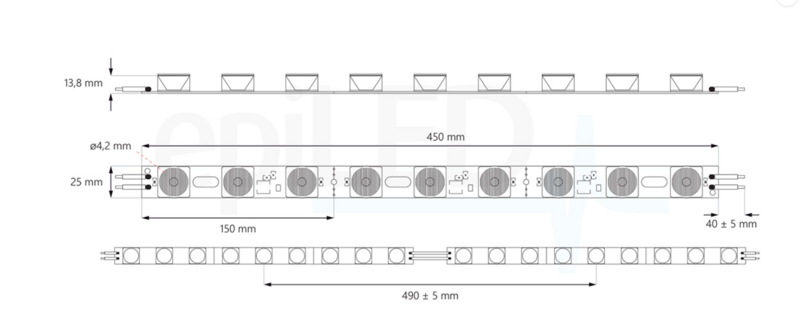

• Can be cut every third piece (150mm).
• Stabiliser technology, ensuring uniformed brightness.
• Aluminium PCB offering superb heat dissipation.
• IP20, suitable for indoor use.
• Designed to withstand extreme temperature conditions, -25°C to +55°C
• 50,000 hours minimum life expectancy.
• Auxiliary assembly with 3M tape.
• 3 year warranty.
• 24V DC
• Chain of 5 pieces, 120 pieces per box.
• WH - White - 6500K
